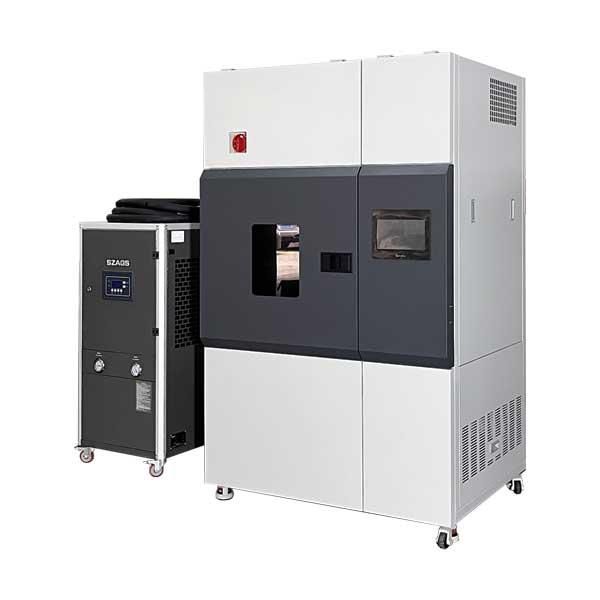

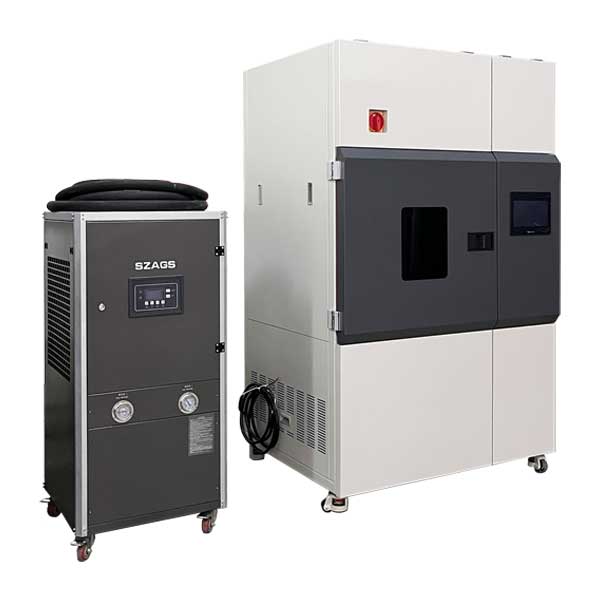

Water-Cooled Xenon Lamp Aging Test Chamber ZY-XD6500

Product Applications:

The ZY-XD6500 Rotary Drum Water-Cooled Xenon Lamp Weathering Test Chamber is also known as a weathering test chamber or an accelerated weathering test chamber; The water-cooled xenon lamp weathering test chamber is a weathering test device that uses a xenon lamp as the simulated light source and a water-cooling system as the core heat dissipation mechanism. It can replicate natural climatic conditions such as sunlight, temperature, humidity, and rain, and is primarily used to evaluate the aging lifespan and performance degradation patterns of materials in outdoor environments. It is widely used in R&D validation and quality control across industries such as coatings, plastics, rubber, and automotive components, and complies with multiple weathering test standards including GB, ISO, and ASTM.

International/National Standards：

GB/T 16422.4-2014 “Plastics—Laboratory Light Source Exposure”
GB/T1865-1997 “Artificial Climatic Aging and Artificial Radiation Exposure of Paints and Varnishes—Filtered Xenon Arc Radiation”
GB/T2423.24-2013 “Simulation of Solar Radiation at Ground Level and Test Guidelines”
GB/T8427-2008 “Color Fastness of Textiles to Artificial Light—Xenon Arc Lamp”
GB/T 32088-2015 “Test Methods for Accelerated Aging of Non-metallic Automotive Parts and Materials Using Xenon Lamps”
ISO: 105-B02 105-B04 105-B06 11341 14892-1 14892-2 12040 C1442 C1501 D904
ASTM: TM 16-2003 TM16E-1998 TM169
AATCC: M346
VW: PV1303 PV3929 PV3930

Key Performance Advantages:

This product is suitable for full-spectrum xenon arc lamp testing methods involving laboratory light exposure of various materials, primarily for evaluating changes in materials when placed outdoors, as well as durability testing of new materials, improved formulations, and products.
It utilizes xenon arc lamps that optimally simulate the full spectrum of sunlight, combined with temperature control, humidity control, and spray systems to simulate factors that cause discoloration, loss of brightness, and reduced strength; cracking, peeling, chalking, oxidation, and other forms of damage caused by factors such as sunlight, high temperature, high humidity, condensation, and dark cycles. Simultaneously, the synergistic interaction between sunlight and moisture weakens or compromises the material’s lightfastness or moisture resistance, making it widely used for evaluating the weather resistance of materials.
It offers the best sunlight simulation and is easy to use. The equipment features program-controlled automatic test cycles, a high degree of automation, excellent light stability, and high reproducibility of test results.

Control System:

Display: 10.4-inch color touchscreen HMI
Operating Language: Chinese HMI; other languages can be added
Operating Modes: Dark, light cycle modes
Energy Control: Shortwave, broadband, full spectrum
Temperature Control: Switchable between black panel temperature, black standard temperature, and air temperature
Humidity Control: Relative humidity control mode
Spray Control: Front spray, rear spray. Each section can be controlled independently
Curve Function: Monitoring of temperature, humidity, and irradiance operating curves
Test Settings: Customizable test chamber and 11 sets of standard program memory
Time Settings: 0–9,999 hours
Data Storage: Automatic storage function, capable of storing data for 6 months
Protection Settings: Over-temperature protection, humidity protection, low-water protection, water temperature protection, and lamp protection; each protection function can be enabled
Data Export: USB port for exporting data to a USB flash drive
Remote Communication: Remote operation and monitoring via mobile app or computer network

Applicable Materials and Industries:

Coatings Industry: Automotive original equipment manufacturer (OEM) paints, architectural exterior coatings, industrial anti-corrosion coatings; evaluation of aging phenomena such as fading, cracking, chalking, and loss of gloss.
Plastics and Rubber Industry: Outdoor plastic components (awnings, outdoor furniture, appliance housings), rubber seals, cable sheaths; testing for embrittlement, cracking, and performance degradation after aging.
Automotive Industry: Exterior automotive components (bumpers, grilles, mirror housings), interior components (dashboards, seat upholstery); verifying weather resistance stability throughout the vehicle’s service life.
Textiles and Building Materials: Outdoor textiles (tents, awnings, sun-protective clothing fabrics) and building materials (plastic doors and windows, photovoltaic module encapsulation materials), to assess durability during long-term outdoor use.
Electronics Industry: Electronic component housings and materials for mobile phone/home appliance casings, to test appearance and performance stability under light exposure and humid-heat environments.

标签：Water-Cooled Xenon Lamp Aging Test Chamber · Xenon Lamp Aging Test Chamber

Black Panel Temperature	Dark Cycle: 38°C to 65±3°C; Light Cycle: 55°C to 100±3°C
Black Target Temperature	Dark Cycle: 38°C to 65±3°C; Light Cycle: 60°C to 110±3°C
Air Temperature	38°C to 65°C
Temperature Deviation	±3°C
Humidity Range (Dark Cycle)	45% R.H. to 95% R.H.
Humidity Range (Irradiation Cycle)	20% R.H. to 75% R.H.
Humidity Deviation	±5%
Xenon Lamp Power	6.5 kW
Xenon Lamp Wavelength	280–3000 nm
Energy Control Points	@340 nm, @340 nm, @300–400 nm (depending on the model ordered by the customer)
Xenon Lamp Irradiance	@340 nm 0.25–0.89 W/m²; @420 nm 0.45–1.50 W/m²; @300–400 nm 29–100 W/m²
Water Spray Mode	Front spray, rear spray
Sample Fixture	70 × 150 mm standard sample tray, three layers
