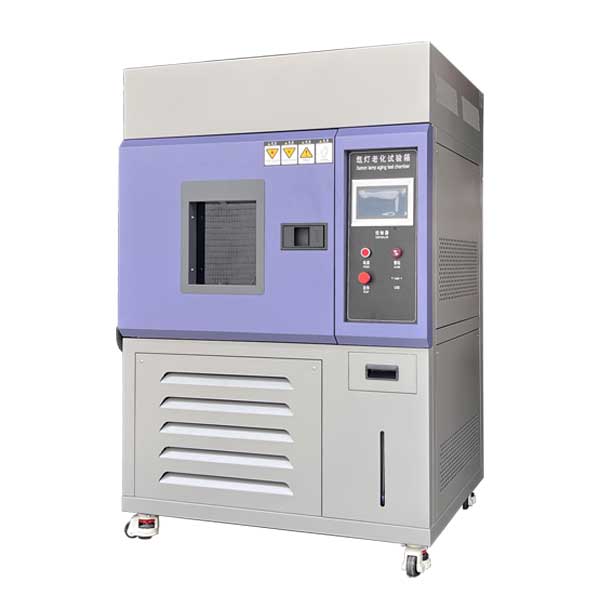

Xenon Lamp Aging Test Chamber

Product Applications：

The ZY-H301-K216S Xenon Arc Weathering Test Chamber is an environmental testing device that accelerates material aging by simulating the full solar spectrum to reproduce the damaging light waves found in various environments. The equipment is used for selecting new materials, modifying existing materials, or evaluating changes in durability following alterations to material composition. By exposing material specimens to the light and thermal radiation of a xenon arc lamp, it conducts aging tests to assess the lightfastness and weather resistance of certain materials under high-temperature light sources.

Design Reference Standards：

GB/T 16422.2-2014 “Plastics—Exposure to Laboratory Light Sources”

GB/T 16259-2008 “Test Methods for Accelerated Weathering of Building Materials”

ISO 4892 “Plastics—Methods of exposure to laboratory light sources—Part 2: Xenon arc lamps”

AATCC TM 16 “Lightfastness”

AATCC 169 “Textile Weathering Test 1: Xenon Arc Lamp Exposure”

GB/T 8427-2008 “Textiles—Color Fastness to Artificial Light—Xenon Arc Lamp”

ASTM D7869 “American Society for Testing and Materials”

ASTM G155 “Standard Practice for Operating Xenon Arc Lamp Apparatus for Exposure of Materials”

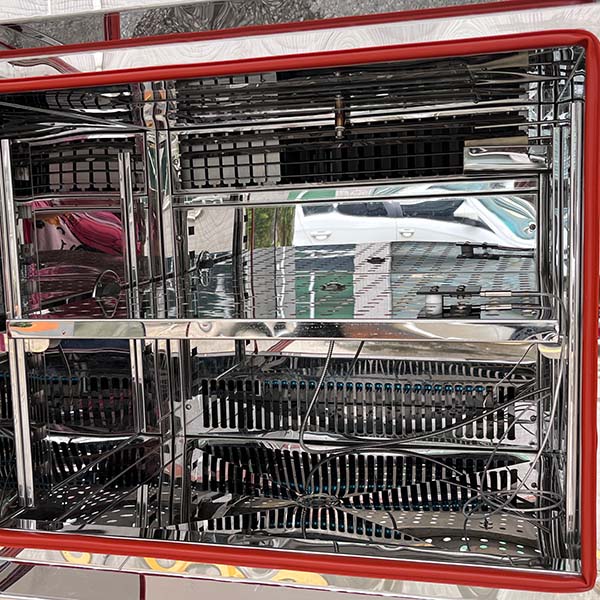

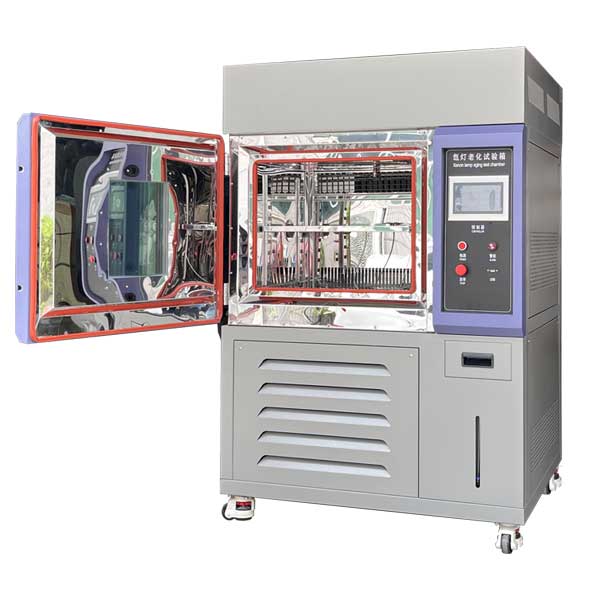

Inner Chamber Structure:

1、 The air-cooled xenon lamp features three 1800W tubes mounted at the top;
2、The lamp is installed directly above the inner chamber and is separated from it by a filter;
3、 The area above the inner chamber has a conical structure, similar to a lampshade, which helps ensure more uniform light distribution;
4、 A parallel sample holder is installed in the center of the inner chamber, and the sample mounting height is adjustable
5、 Adjustable in 50 mm increments to accommodate different sample sizes;
6、 An irradiance sensor is mounted in the center of the sample rack;

Main Applications of Xenon Lamp Weathering and Aging Test Chambers:

Verification of weather resistance and color retention in coatings and paints
Testing of UV degradation and mechanical property deterioration in rubber and plastics
Evaluation of light-induced aging resistance in automotive interior and exterior components
Testing of lightfastness in textiles
Verification of environmental durability in packaging materials for electronic components

Model	ZY-H301-K216S
Internal dimensions	750 × 600 × 600 mm (W × D × H)
External dimensions	Approx. 1360 × 1260 × 1850 mm (W × D × H); actual dimensions may vary
Xenon Lamp Irradiance	0.25–1.0 W/m² @ 340 nm
Filter	Daylight filter
Effective Exposure Area	Approx. 2200 cm²
Number of Lamps	Three, 1.8 kW each
Total Lamp Power	5.4 kW
Lamp lifespan	Approx. 1,200 hours
Chamber temperature range	RT+10°C to 70°C
Black panel temperature range	Adjustable from 40°C to 100°C (lighting cycle); 25°C to 85°C (dark cycle)
Thermometer	Black panel thermometer
Irradiance meter	Intelligent fully automatic irradiance compensation
Temperature accuracy	±0.1°C
Temperature fluctuation	±0.5°C
Temperature deviation	±3°C
Humidity range	30%–98% RH (during darkness); 20%–60% RH (during illumination)
Humidity accuracy	±1% RH
Humidity Fluctuation	±3%RH
Humidity Deviation	≤±5%RH
Light Cycle Duration	1S–999H59M59S, continuously adjustable
Rain Cycle	Adjustable rain intervals (on/off) from 1 to 240 min
Spray Cycle	18 min/102 min or 12 min/48 min (spray time/non-spray time)
Rainwater pressure	0.12–0.15 MPa
Spray nozzle orifice diameter	Φ0.8 mm
Door seal	Silicone rubber tight-seal device
Sample rack material	SUS304 stainless steel
Inner chamber material	SUS304 stainless steel
Outer chamber material	Cold-rolled steel with baked paint finish
