Peel Strength Tester

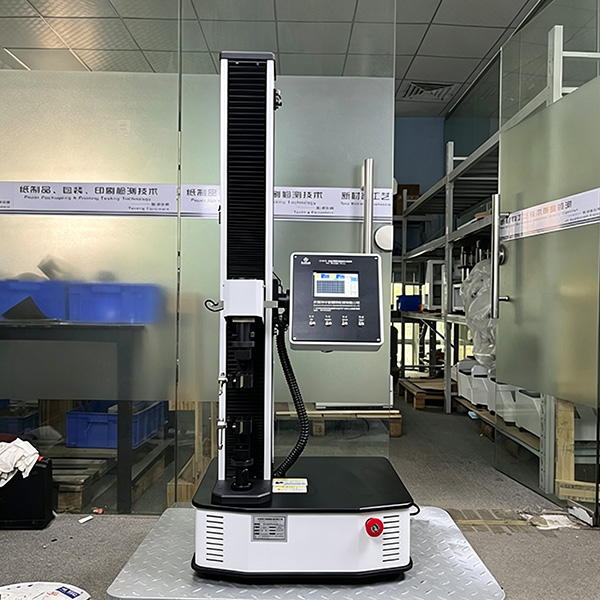

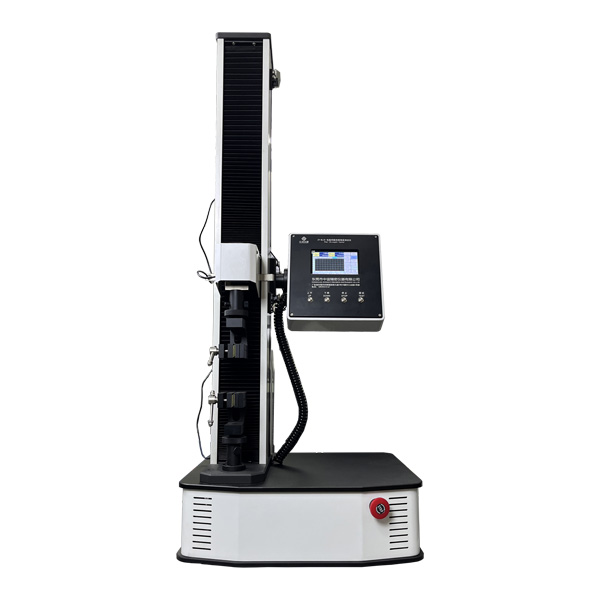

The ZY-BL30 Computerized Servo Peel Strength Tester is a state-of-the-art laboratory instrument designed for the high-precision evaluation of adhesive strength, peel resistance, and bond integrity. Utilizing an advanced Servo Motor system, this machine provides ultra-stable speed control and displacement accuracy, making it the industry standard for testing pressure-sensitive adhesives (PSA), tapes, labels, protective films, and composite materials.

Core Technical Advantages :

Precision Servo Drive System：Equipped with a high-performance servo motor and ball screw, ensuring silent operation and a wide speed range (0.01-500 mm/min) with extreme stability.

Professional Analysis Software：Real-time curves display (force-displacement, force-time), automatic data calculation (max, min, average), and detailed PDF/Excel report generation.

High-Accuracy Load Cell：Provides force measurement accuracy within ±0.5% FS, allowing for the detection of even the most subtle variations in adhesive performance.

Multi-angle Versatility：Supports 180-degree peel, 90-degree peel, T-peel, and loop tack tests with specialized fixtures to meet diverse industry requirements.

Applications：

Adhesive Tape Industry: Evaluating the bond strength of industrial and consumer tapes.
Packaging & Labels: Testing label release force and laminate integrity.
Electronics & Protective Films: Measuring the peel force of screen protectors and conductive tapes.

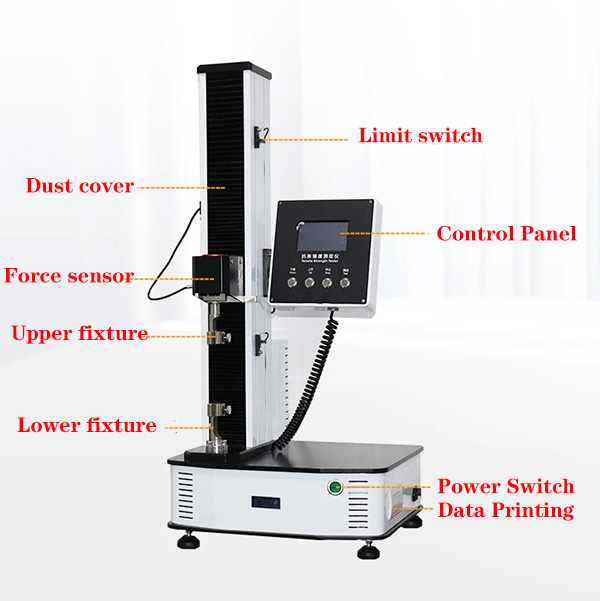

Component Configuration：

Exterior Material: High-grade baked enamel
Display: Computer monitor
Power System: Servo motor + servo drive + ball screw + synchronous belt drive
Load Cell: U.S. Transcell Sensor
Control System: Utilizes TM2101C advanced system software

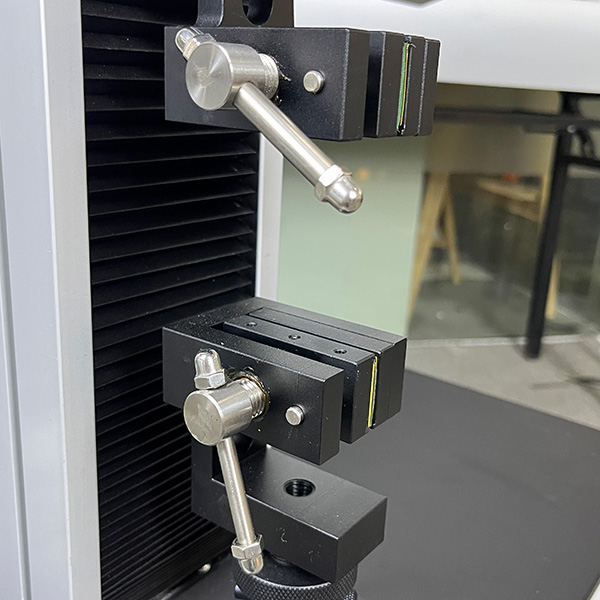

Test Fixtures: Stainless steel or aluminum alloy
Bearings: Taiwanese precision bearings
Safety Devices: Overload emergency shutdown device, upper and lower travel limit switches, automatic power-off device for electrical leakage
Accessories: One power cord, one user manual, one data cable, one set of standard fixtures. (Includes one software package)

Item	Specification
Load range	0–30 N / 0–300 N (other ranges available as optional configurations)
Force resolution	1/10,000
Minimum resolution	0.01 N
Loading speed	Computer-controlled, infinitely adjustable from 5 to 500 mm/min
Speed accuracy	±1% at 1–10 mm/min, ±0.5% at 10–500 mm/min
Specimen width	≤30 mm; other sizes available upon request
Stroke	500 mm; other lengths available upon request
User interface	Microcomputer control with 3.5-inch LCD display. Optional PC control software system; supports report editing via Windows system and A4 printout of curve analysis graphs
Printing	Modular integrated thermal printer
Operating Environment	Temperature (20±10)°C, Humidity <85%
Power Supply	AC 220V, 50Hz
Dimensions	500 mm (L) × 500 mm (W) × 1350 mm (H)
Net Weight	60 kg

Q1: What is a Computerized Servo Peel Strength Tester used for?

A Computerized Servo Peel Strength Tester is a high-precision laboratory instrument used to evaluate the adhesive bond strength of various materials. It is widely used to perform 180-degree peel, 90-degree peel, and T-peel tests on adhesive tapes, labels, protective films, medical packaging, and laminates. The "Computerized" aspect allows for detailed data analysis and real-time graphing via specialized software.

Q2: Can this machine perform both 180° and 90° peel tests?

A: Yes. By simply changing the testing fixtures (jigs), the machine can easily switch between 180-degree and 90-degree testing modes. We also offer specialized plates for loop tack tests and T-peel tests, making it a highly versatile Universal Testing Machine (UTM) for the adhesive industry.

Q3: What data can be extracted from the computerized analysis software?

A: The professional software provides a complete Force-Displacement curve in real-time. It automatically calculates the maximum, minimum, and average peel strength, as well as the standard deviation. Users can export results in PDF or Excel formats, which are essential for quality control (QC) reports and R&D analysis.
