Application：

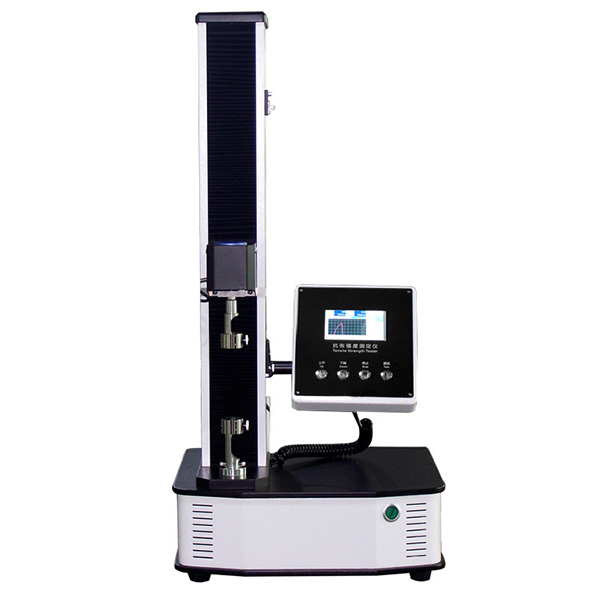

Tensile tester for paper and board is used to determine the tensile strength, elongation, breaking length, tensile energy absorption (TEA), tensile index, and tensile energy absorption index of paper.
Standard：
GB/T 453, GB/T 12914, ISO 1924-2, GB/T 20810, GB/T 22728-2011, GB/T 20808
Technical Parameters：
| Accuracy Class | Class 1 |
| Measuring Range | (6 ~ 30) N: For tissue paper (6 ~ 300) N: For packaging and cultural paper (10 ~ 500) N: For all general paper and high-strength paper (50 ~ 2000) N: For specialty paper |
| Test Force Range | 0.4% ~ 100% FS |
| Indication Accuracy | Indication error ±1%, indication variation ≤1% |
| Elongation Measuring Range | (0 ~ 130) mm (at 180 mm standard test length) |
| Test Speed Error | (5 ~ 10) mm/min: ±1 mm/min (10 ~ 100) mm/min: ±5% (100 ~ 500) mm/min: ±6% |
| Force Accuracy | Within ±1% |
| Clamp Distance Positioning Error | ±0.5 mm |
| Moving Clamp Reset Error | ±0.1 mm |
| Force Resolution | 0.1 N |
| Deformation Resolution | ≤0.1 mm |
| Clamp Distance | Test length is freely selectable from (1 ~ 400) mm |
| Tensile Speed | (6 ~ 150 N): 1 ~ 500 mm/min, stepless speed regulation (6 ~ 1500 N): 1 ~ 180 mm/min, stepless speed regulation |
| Return Speed | 5 ~ 180 mm/min |
| Sensor Protection | PROTEC SYSTEM rapid sensor protection device |
| Distance Limit | High-precision external limit switch, adjustable for different materials |
| Drive Screw | Precision ball screw with Taiwan single-column structure |
| HMI | 5.0-inch touch screen with real-time curve display |
| Software | Computer connection for control, test and report printing (optional) |

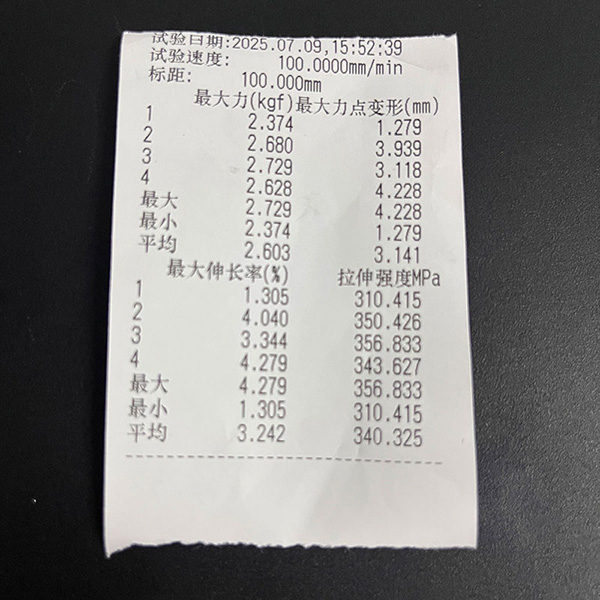

| Print Output | Modular integrated thermal printer |
| Dimensions | 480 × 450 × 1400 mm |
| Weight | About 50 kg |
