Tensile Strength Tester for Paper and Paperboard

Product Description:

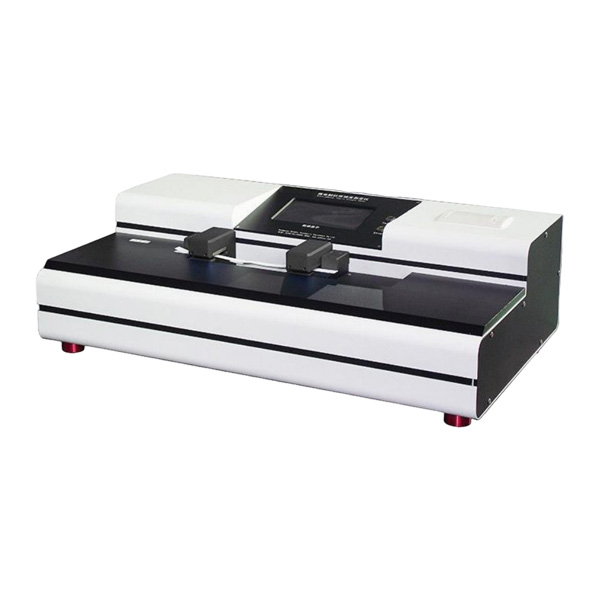

The fully automatic horizontal computerized tensile tester is a specialized instrument designed to measure parameters such as paper tensile strength and wet tensile strength. Featuring a horizontal design, the instrument is compact, fully functional, and easy to operate. It employs a pneumatic clamping mechanism that ensures the specimen remains flat, thereby reducing human error associated with manual clamping devices; this design represents a first-of-its-kind innovation in the domestic market. Utilizing state-of-the-art ARM technology, the instrument offers powerful data processing capabilities, automatic reset functionality, easy adjustment, and stable performance. It features a large-screen color touchscreen LCD display with a Chinese menu, providing real-time display of all data and tensile curves.

Product Features:

Measures paper tensile strength, tensile energy absorption, elongation, tear length, tensile energy absorption index, and tensile index
Measures the wet tensile strength of tissue paper (available in manual or fully automatic modes)

Standards：

1、GB/T 12914 Paper and paperboard—Determination of tensile strength—Constant-speed tensile test (20 mm/min)
2、GB/T 24328.3 Toilet paper and related products — Part 3: Determination of tensile strength, elongation at maximum force, and tensile energy absorption
3、GB/T 24328.4 Toilet paper and related products — Part 4: Determination of wet tensile strength
4、ISO 1924-2 Paper and paperboard — Determination of tensile strength — Part 2: Constant-rate of elongation method (20 mm/min)
5、TAPPI T494 Tensile properties of paper and paperboard (using constant rate of elongation apparatus)
6、JJG (Light Industry) 58.2-2000 Horizontal paper tensile testing machine

Test Principle：

The tensile strength tester stretches a specimen of specified dimensions to fracture under constant-speed tension, measures its tensile strength, and records the ultimate tensile strength, elongation at break, and tensile modulus at the point of fracture.

Product Features：

Microcomputer-controlled technology with fully automatic pneumatic specimen clamping; simple and convenient operation; one-button testing;

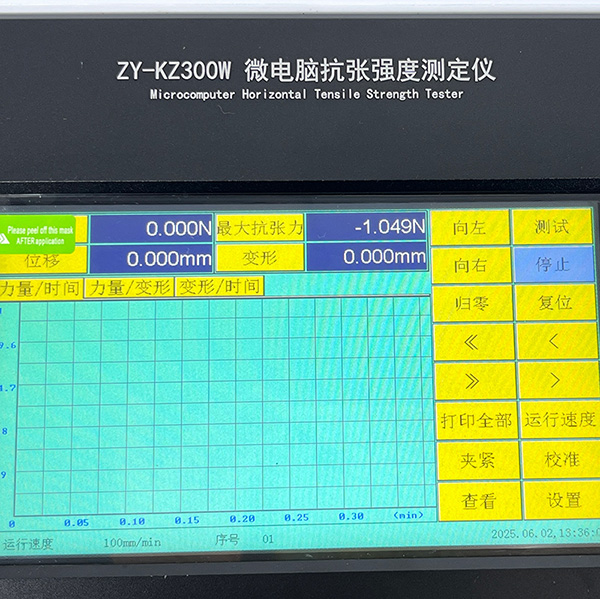

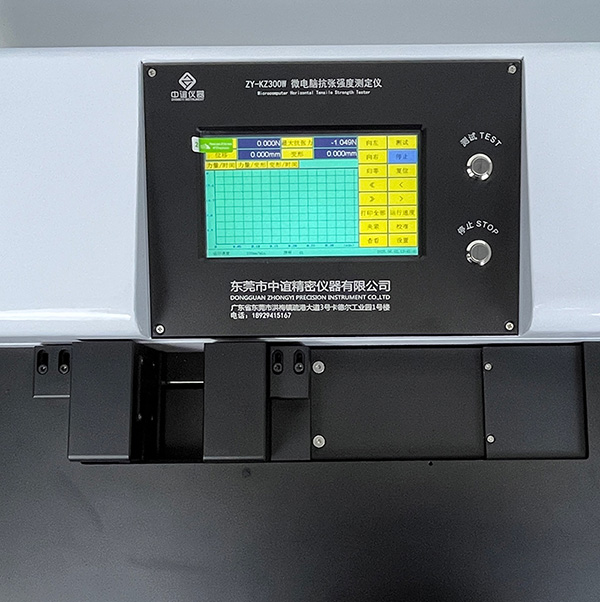

7.0-inch large-screen color touchscreen LCD display with Chinese menus; real-time display of all data and tensile curves;
Equipped with an imported stepper motor and microstepping technology, ensuring precise positioning, fast speed response, reduced testing time, and improved testing efficiency;
Equipped with a high-speed ARM processor, offering a high degree of automation, fast data acquisition, fully automatic measurement, and intelligent judgment functions for safe and reliable operation;
Features a 24-bit high-precision AD converter (resolution up to 1/10,000,000) to ensure fast and accurate force data acquisition;
Optional computer software connection for convenient data analysis, management, storage, and printing functions;

Scope of Application：

Paper： Suitable for determining the tensile strength of base paper, cardboard, kraft paper, whiteboard paper, and cardstock
Mica Paper：Suitable for determining the tensile strength of mica paper, non-woven fabrics, and other materials
Tissue Paper： Suitable for determining the tensile strength of hygiene products and new types of household materials
Insulation Paper： Suitable for determining the tensile strength of electrical paperboard and electrical insulation paperboard
Fiber Paper： Suitable for determining the tensile strength of capacitor paper, cable paper, high-temperature fiber paper, and similar materials
Filter Paper： Suitable for determining the tensile strength of qualitative filter paper, quantitative filter paper, and similar materials
Others： Suitable for determining the tensile strength of other industrial papers, graphene, and composite fiber materials

Item	Specification
Accuracy Class	Class 1
Measurement Range	(0–30) N for household paper; (0–300) N for packaging & cultural paper; (10–500) N for general & high-strength paper; (50–2000) N for specialty paper. Select based on actual products.
Test force measurement range	0.4% ~ 100% FS
Indicated value accuracy	Indicated value error ±1%, indicated value variability ≤1%
Specimen length	50–200 mm (digital precision positioning, adjustable as needed)
Specimen width	15 mm, 25 mm, 50 mm (three adjustable settings)
Grip spacing positioning error	±0.5 mm
Moving jaw reset error	±0.1 mm
Accuracy	0.01 N
Force resolution	0.001 N
Deformation resolution	≤0.1 mm
Tensile speed	1–399 mm/min (digitally adjustable)
Return speed	1–399 mm/min (digitally adjustable)
Operating air pressure	0.2–0.4 MPa
Instrument dimensions (L×W×H)	920 mm × 420 mm × 300 mm
Weight	65 kg
