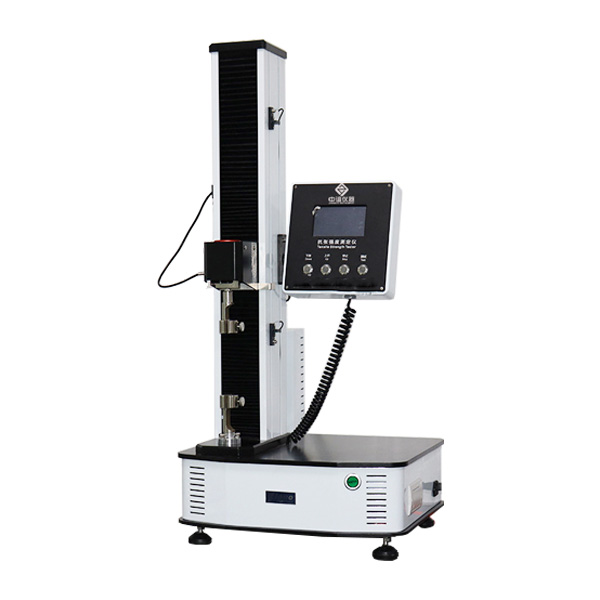

90° Peel Strength Tester

Product Overview：

The 90° peel strength tester is a specialized testing instrument designed to measure the peel resistance of material bond interfaces.Suitable for testing the peel strength, tear strength, and other properties of adhesives, adhesive tapes, pressure-sensitive labels, medical patches, protective films, release liners, laminated films, synthetic leather, woven bags, films, paper, and related products.

Product Features：

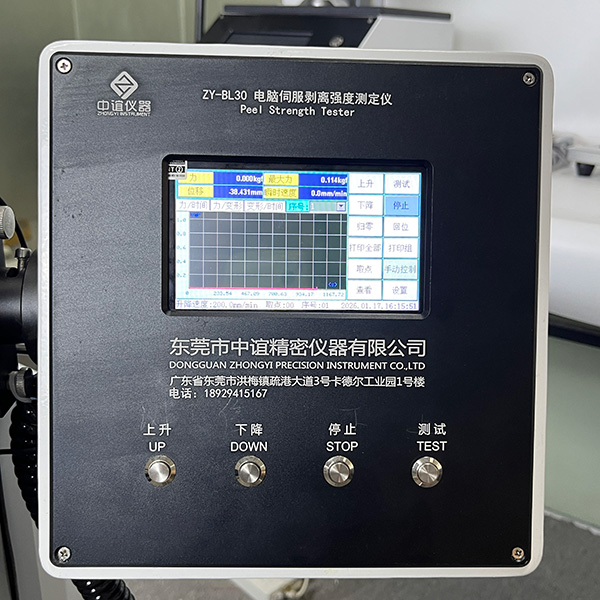

7-inch extra-large full-touch screen with a stylish and user-friendly interface
Supports multiple testing standards to meet the needs of the vast majority of industrial applications
High-precision imported sensors ensure a force measurement system with high accuracy and repeatability, featuring over-range protection
Precision ball screw multi-axis positioning technology enables stepless speed control, delivering a smooth motion drive system with high operational accuracy
Intelligent safety features including motion limit protection, overload protection, automatic return, and power-off memory ensure the safety of both the user and the instrument
Automatic zero calibration upon startup; supports manual sensor zeroing
Pneumatic specimen clamping reduces operation time and provides a smoother user experience
Real-time test curves display force trends during testing; supports statistical analysis of test results for individual tests or groups
A built-in mini-printer allows for on-the-spot printing of test statistics
Equipped with a standard USB communication interface
Dedicated computer communication software enables real-time test display, data analysis and processing, and data storage

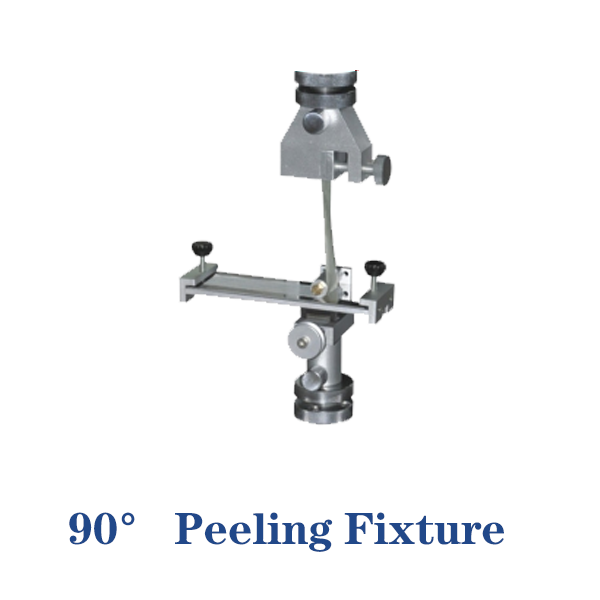

The system offers extensive testing capabilities and comes with over 50 different specimen fixtures for users to choose from, capable of meeting the testing requirements for more than 1,000 types of materials;

Applicable Materials:

Adhesive Products: Pressure-sensitive tapes, self-adhesive labels, medical patches, protective films, release liners, etc.
Packaging and Laminated Films: Plastic laminates, aluminum-plastic films, flexible packaging for food/pharmaceuticals, synthetic leather, etc.
Electronics and New Energy: PCB/FPC copper-clad laminates, adhesion of coatings on lithium-ion battery electrodes, bonding strength of electronic components.
‌Others: Rubber, textiles, waterproof materials, metal foils, etc.

Item	Specification
Load range	0–30 N / 0–300 N (other ranges available as optional configurations)
Force resolution	1/10,000
Minimum resolution	0.01 N
Loading speed	Computer-controlled, infinitely adjustable from 5 to 500 mm/min
Speed accuracy	±1% at 1–10 mm/min, ±0.5% at 10–500 mm/min
Specimen width	≤30 mm; other sizes available upon request
Stroke	500 mm; other lengths available upon request
User interface	Microcomputer control with 3.5-inch LCD display. Optional PC control software system; supports report editing via Windows system and A4 printout of curve analysis graphs
Printing	Modular integrated thermal printer
Operating Environment	Temperature (20±10)°C, Humidity <85%
Power Supply	AC 220V, 50Hz
Dimensions	500 mm (L) × 500 mm (W) × 1350 mm (H)
Net Weight	60 kg
