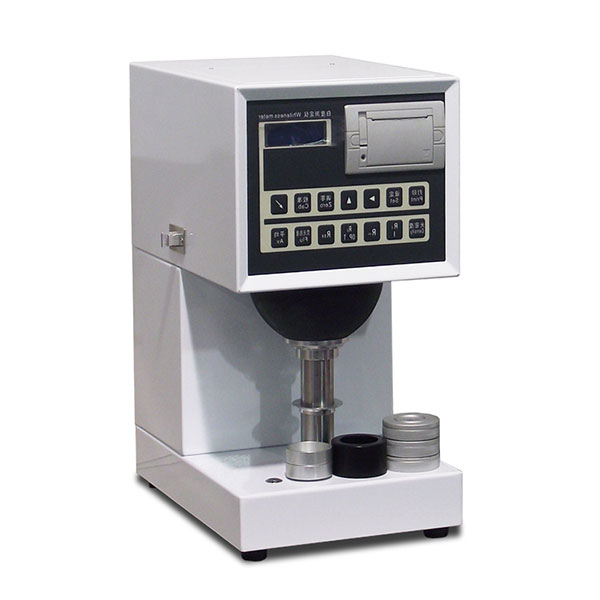

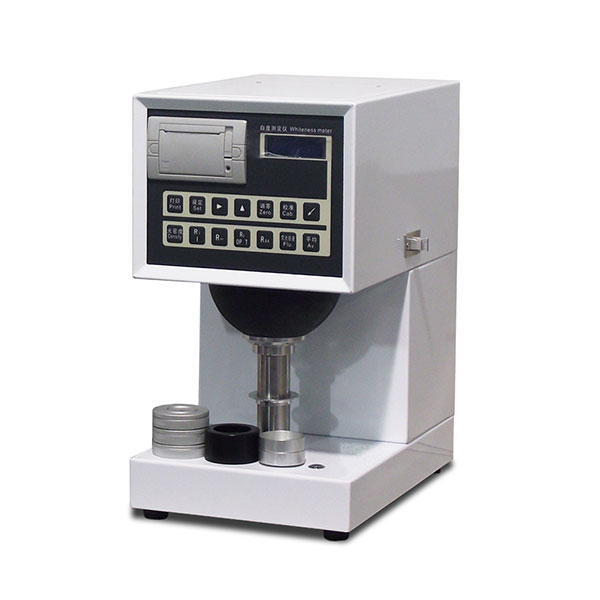

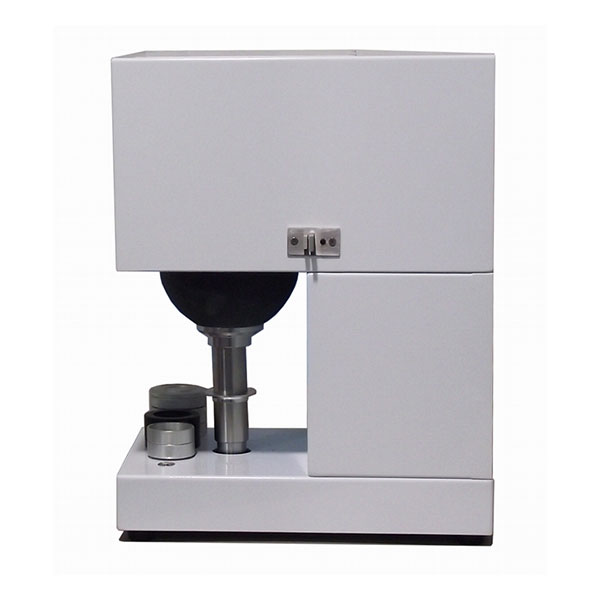

Whiteness meter ZY-BDY01

Product Application:

The ZY-BDY01 Whiteness Tester is used to measure the whiteness of base paper materials in the pulp and paper, packaging, and printing industries. This tester can accurately determine whiteness values that correspond to visual perception. For objects treated with optical brighteners, it can quantitatively reflect the whiteness values after brightening. It can also accurately measure and determine the opacity of paper. It is widely used in industries and commodity inspection departments that require the measurement of whiteness in paper, pulp, fiber pulp, textiles, printing and dyeing, plastics, ceramics, grains, building materials, paints, chemicals, salt, cement, starch, calcium carbonate, talc, and other materials.

In accordance with the following standards：

​GB/T 7973, GB/T 7974, GB/T 2679, GB/T 1543, GB/T 10339, GB/T 12911, GB/T 2913
GB/T 13025.2, GB/T 22427.6, ISO 2469, ISO 2470, ISO 2471, ISO 9416

Product Features：

• Measures the blue light diffuse reflectance factor (R457) of a sample, known as blue light whiteness or ISO brightness;
• Analyzes whether the sample material contains fluorescent whitening agents and measures the fluorescent whiteness resulting from fluorescent reflection, i.e., whitening degree;
• Determine the luminance stimulus value Y10 of the sample, i.e., the green light diffuse reflectance factor RY;
• Optional functions: Determine the opacity (OP), transparency, light scattering coefficient (S), and light absorption coefficient (A) of the sample;
• Determine the ink absorption value of paper and paperboard;

Product Features:

1. Advanced circuit design effectively ensures the accuracy and stability of measurement data.
2. The instrument features power-off protection, ensuring that calibration data is not lost after a power failure.
3. This instrument is equipped with a standard RS232 interface for communication with computer software (sold separately).

Scope of Application:

1. Paper and Cardboard: Suitable for measuring the whiteness of various papers, cardboards, hygiene products, and other materials.
2. Textiles and Dyeing: Suitable for measuring the whiteness of home textiles, fiber fabrics, textile raw materials, and other materials.
3. Paints and Coatings: Suitable for measuring the whiteness of wall paints, wood finishes, metal paints, chemical coatings, and other materials.
4. Chemical and Building Materials: Whiteness measurement of construction plastics, coatings, waterproofing and sealing materials, thermal insulation and soundproofing materials, adhesives, concrete admixtures, and other materials
5. Plastic Products: Whiteness measurement of engineering plastics, household plastic products, industrial plastic products, and other materials
6. Others: Whiteness measurement of detergents, cosmetics, talcum powder, starch, flour, table salt, and other materials
