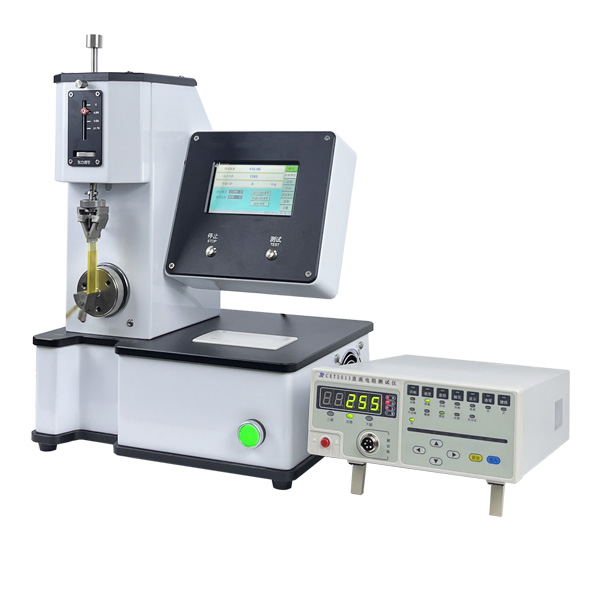

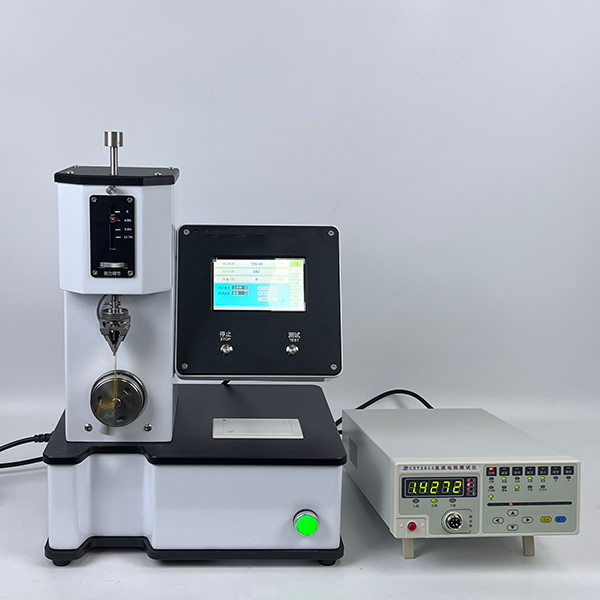

Material bending resistance testing machine

Product introduction of flexural strength tester:

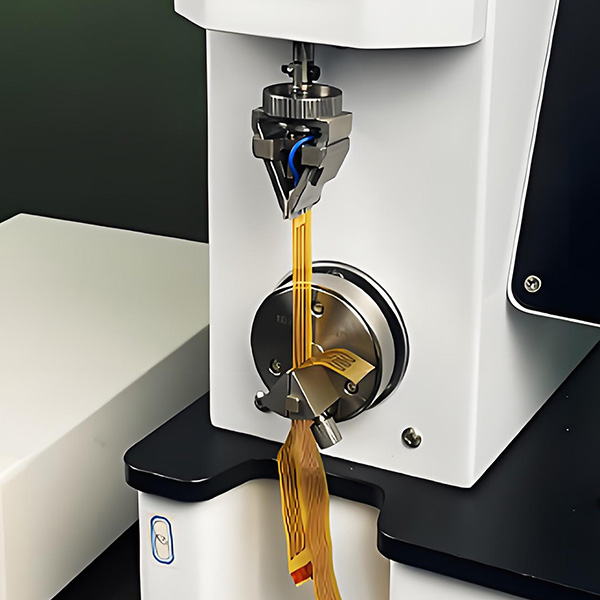

Mainly used to test the folding resistance of sheet materials such as paper, cardboard, copper foil, aluminum foil, plastic film, and flexible circuit boards (FPC) with a thickness of less than 1mm. This device quantitatively evaluates the bonding strength, flexibility, and durability of its internal fiber structure by simulating the repeated bending of materials during actual use, processing, and circulation. ‌

Standards：

GB/T 457, QB/T 2679.5, ISO 5626GB/T 457, QB/T 2679.5, ISO 5626

Technical Parameters：

Measuring Range	0~999999 times
Folding Angle	(135±2)°
Folding Speed	(175±10) times/min

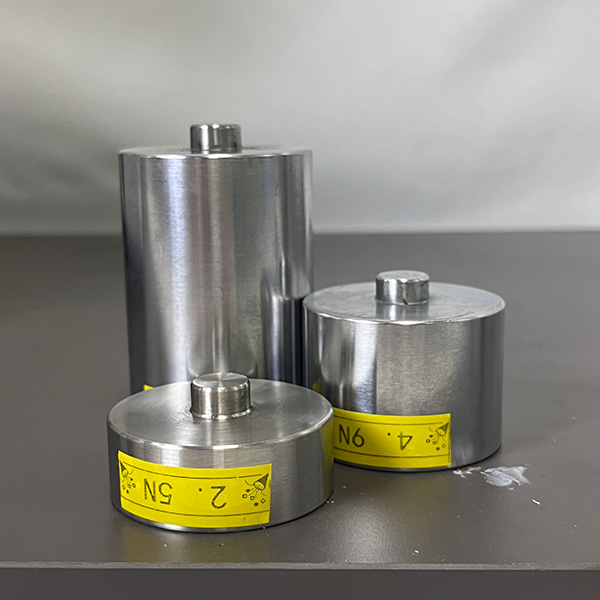

Spring Tension	4.91N, 9.81N, 14.72N
Test Tension System	Imported tension configuration, tension stability is twice as high as domestic brands
Folding Chuck	Tension variation caused by rotation eccentricity ≤ 0.343N
Folding Head Width	19±1mm
Folding Notch Radius	0.38±0.02mm
Specimen Length	≥140mm
Notch Temperature Variation	≤1°C after 4 hours
Chuck Distance	9.5mm
Lower Clamp	Column knurled knob for easier force clamping
Folding Notch Gap	0.25mm, 0.5mm, 0.75mm, 1.0mm, 1.25mm
HMI	5-inch touch screen
Printout	Modular integrated thermal printer
Operating Environment	Temperature (0~35)°C, Humidity < 85%
Power Supply	AC 220V, 50Hz

Measurement range	0~99999 times [logarithmic 0~lg4]
Folding angle	135 ° (15~180 °) ± 1 ° adjustable
Folding speed	175 ± 5 times/min (adjustable from 2 to 200 times/min)
Tension adjustment	4.91N、9.82N、14.73N
Standard clamp	spiral locking fixture with parallel position of the specimen
Upper clamping thickness range	(0.1~2.30) mm
Upper clamping width range	(0.1~16.0) mm
Upper clamping force area	7.8 * 6.60mm/51.48mm²
Upper clamping force torque	19.95:5.76-Wid 9.85mm
Parallel positioning height of sample	16.0mm
Folding clamp	tension change not exceeding 0.343N
Folding head width	(0.1~20.0) mm
Lower fixture clamping method	cylindrical rolling knob, more convenient for force clamping
Bend radius	0.38 ± 0.01mm
Reproducibility	10% (when 30T), 8% (when 3000T)
Fold temperature change	≤ 1 ° C, AFTER 4H
Sample length	≥ 140mm
Distance between upper and lower clamps	9.5mm
The distance between the folding seams	0.25mm、0.5mm、0.75mm、1.00mm
Human computer interface	5.0-inch color touch screen/dual system in Chinese and English
Print output	modular integrated thermal printer
Size and weight	300 * 300 * 450mm
Weight	30kg
