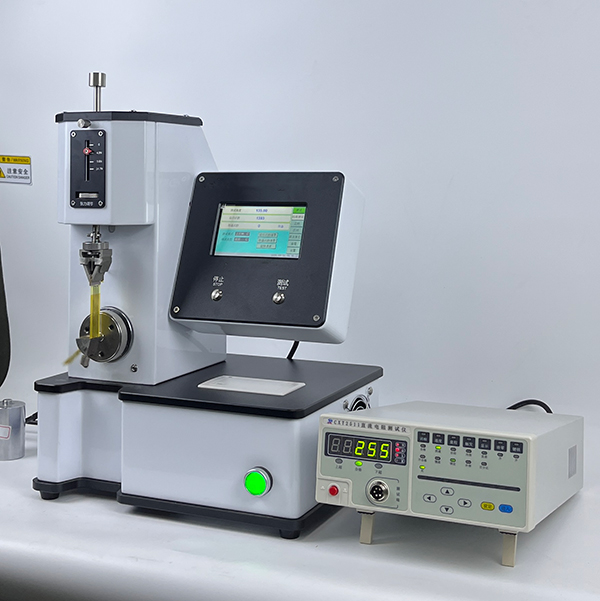

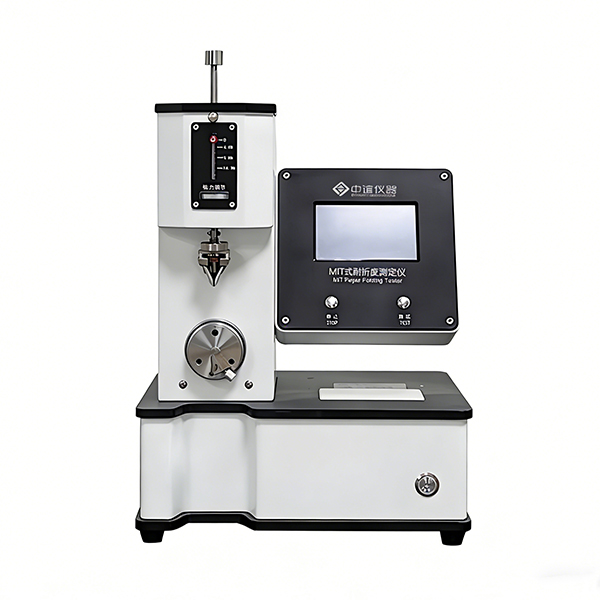

Paper and cardboard folding resistance tester

Product introduction of flexural strength tester：

The paper and cardboard folding resistance tester is a testing device used to determine the flexural fatigue strength of paper, cardboard, and other sheet materials (such as plastic film and metal foil) under standard tension. It characterizes the material's flexural performance by reciprocating 135 ° double folding times or corresponding numerical values. It is an essential tool for quality control and research and development innovation in the fields of paper making, packaging, quality inspection, and scientific research.

Test Principle：

Folding resistance refers to the number of double folds that paper or cardboard can withstand up to 135 degrees of reciprocating movement under a certain tension. It is expressed as the number of reciprocating folds or the logarithm of double folds with a base of 10. The number of times it is broken is recorded as the folding resistance.

Test Standard：

GB/T457、QB2679.5、ISO 5626

Technical Specifications：

Product Features：

1. The instrument adopts microcomputer control technology to enable the folding chuck to automatically return to its original position after each experiment;
2. Multiple samples are tested simultaneously, and the values, minimum values, average values, and coefficient of variation are calculated simultaneously;
3. 7.0 large touchscreen display, free switching between Chinese and English languages;
4. Equipped with various folding heads and weights, and can also be customized according to needs;
5. The horizontal and vertical directions, speed, angle, frequency, and tension can be adjusted;
6. Emergency button, which can control the process at any time in case of emergencies;
7. Save initial settings during power outage, and automatically reset upon completion of testing;

Scope of application of the flexural strength tester：

aper：Suitable for testing the folding resistance of materials such as base paper, printing paper, and yarn tube paper
Corrugated cardboard： suitable for testing the flexural resistance of materials such as corrugated cardboard boxes, box board paper, corrugated cardboard, etc
Aluminum foil： Suitable for testing the flexural resistance of materials such as copper foil and aluminum foil with a certain thickness
Fiber materials： suitable for testing the flexural performance of materials such as glass fiber and carbon fiber
Thin films： testing of flexural performance of optical films, composite films, superconducting films, and insulating membrane materials
Flexible circuit board： various FPC boards, flexural strength testing of circuit boards
Other materials： suitable for testing the flexural performance of non-woven fabrics, fabrics, leather, and conductive materials
