Film Folding Endurance Tester | Plastic Film & Battery Separator Testing

Product Overview：

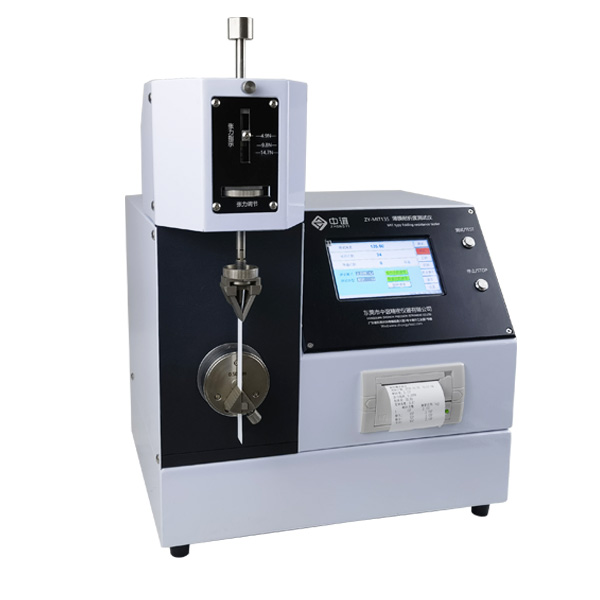

The ZY-MIT135 Film Folding Endurance Tester is specifically designed to determine the fatigue life of plastic films, composite materials, and flexible packaging under repeated folding. This instrument simulates the folding endurance of materials during actual packaging, folding, and usage, making it indispensable quality control equipment for food packaging, electronic films, and lithium battery separator industries.

Principle of Operation：

Dynamic Bending: The drive mechanism performs reciprocating bending on the test specimen at a set angle (e.g., 135° ± 2°) and speed (175 ± 5 cycles per minute) to simulate real-world usage conditions.
Cumulative Fatigue Testing: Sensors monitor stress changes in real time during the bending process, and a counter records the critical number of cycles leading to fracture.

Standards：

International Standards: ISO 5626 (Fold Resistance of Paper and Film),
ASTM D2176 (Fold Resistance of Plastic Film)
National Standards: GB/T 2679.5 (Fold Resistance of Paper and Paperboard),
QB/T 2693 (Testing of Packaging Materials)

标签：Film Folding Resistance Tester · Folding fatigue tester

Measurement range	0~99999 times [logarithmic 0~lg4]
Folding angle	135 ° (15~180 °) ± 1 ° adjustable
Folding speed	175 ± 5 times/min (adjustable from 2 to 200 times/min)
Tension adjustment	4.91N、9.82N、14.73N
Standard clamp	spiral locking fixture with parallel position of the specimen
Upper clamping thickness range	(0.1~2.30) mm
Upper clamping width range	(0.1~16.0) mm
Upper clamping force area	7.8 * 6.60mm/51.48mm²
Upper clamping force torque	19.95:5.76-Wid 9.85mm
Parallel positioning height of sample	16.0mm
Folding clamp	tension change not exceeding 0.343N
Folding head width	(0.1~20.0) mm
Lower fixture clamping method	cylindrical rolling knob, more convenient for force clamping
Bend radius	0.38 ± 0.01mm
Reproducibility	10% (when 30T), 8% (when 3000T)
Fold temperature change	≤ 1 ° C, AFTER 4H
Sample length	≥ 140mm
Distance between upper and lower clamps	9.5mm
The distance between the folding seams	0.25mm、0.5mm、0.75mm、1.00mm
Human computer interface	5.0-inch color touch screen/dual system in Chinese and English
Print output	modular integrated thermal printer
Size and weight	300 * 300 * 450mm
Weight	30kg
