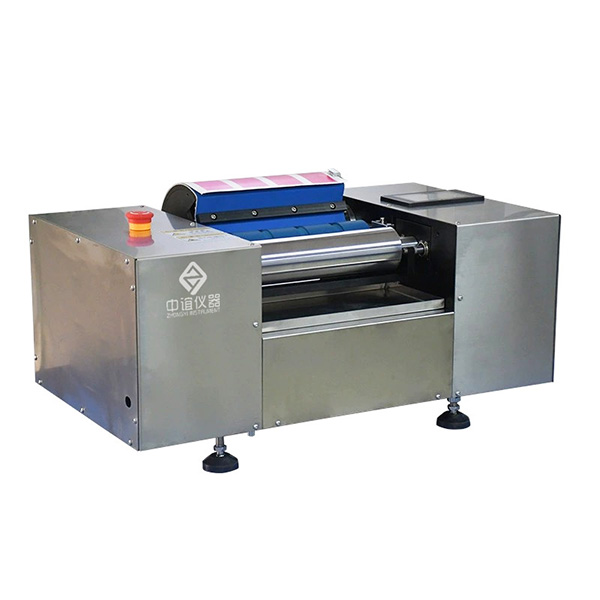

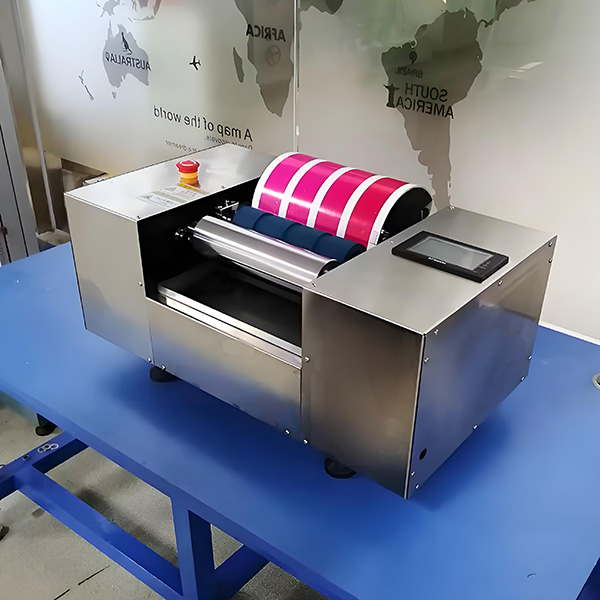

Rubber plate color display instrument ZY-ZSY01

Introduction to the use of color display instrument：

ZY-ZSY01 rubber plate color display instrument, also known as color display machine, ink color display instrument, color matching instrument, sampling machine, printing adaptability instrument, etc; Color display instrument is a core equipment used for ink testing in printing, packaging, and ink enterprises. It simulates the working principle of printing machines and supports various processes such as offset printing, gravure printing, and flexographic printing, adapting to ordinary ink, UV ink, and different substrates (paper, plastic film, etc.)

Standard basis:

GB/T 8941、ISO2813、ISO 2469、ISO 9416、GB/T 7973、GB/T 7974 、GB/T 12911、GB/T7706、ASTM D 6531

The ink color analyzer mainly has seven functions: spot color sampling, four-color ink detection, providing customers with pre press spot color approval, detecting the degree of color change of dry and wet ink, using it in conjunction with an ink quantification instrument, data management, and cooperating with relevant instruments to predict the characteristics of ink wear resistance, fading, transfer, and light and heat resistance.

The core advantages of the rubber plate sampling machine are:

Automatic ink mixing, stable operation, precision machining.
The ink mixing time and speed can be set.
The printing pressure and speed can be adjusted, with three levels of printing speed: low, medium, and high
Ink uniformity speed: low, medium, high, with 3 settings, can produce 4 colors per sample.
Suitable for spot color sampling of printing offset ink, with 4 primary color zones and 4 light color zones, making it easier to compare colors and convenient to use.
Use a spectrophotometer to measure color, including ink hue, dryness, wetness, glossiness, and Lab value.

Ink mixing method	Automatic ink mixing by motor (adjustable ink mixing time)
Rubber roller material	The material can be used for ordinary offset printing ink and vegetable oil-based ink
Printing accessories	The printing pressure can be precisely adjusted externally according to the thickness of the material
Printing pressure	-1~+1mm manually adjustable, printing pressure can be precisely adjusted externally according to the thickness of the printing material
Embossing paper specifications	It is best to be able to imprint paper with a thickness of 0-2.50mm and plastic film with a thickness of 1mm
Embossing speed and printing speed range	High speed: 20 r/min, medium speed: 15 r/min, low speed: 10 r/min
Ink uniformity speed	Three levels of direct speed regulation, namely 400, 500, and 700 revolutions per minute; The printing speed can be adjusted by shifting according to the ink properties (viscosity) and paper properties (softness and hardness)
Variable frequency speed regulation	1000 revolutions per minute.
Steel roller speed	cleaning: 100 to 800 revolutions per minute; Uniform ink: 100 to 1000 revolutions per minute
Color display speed	Three speed regulation: 10, 15, 20 revolutions per minute, speed regulation, variable frequency speed regulation, 0-30 revolutions per minute.
Roller width	225mm (maximum color display area of 225mm x 210mm)

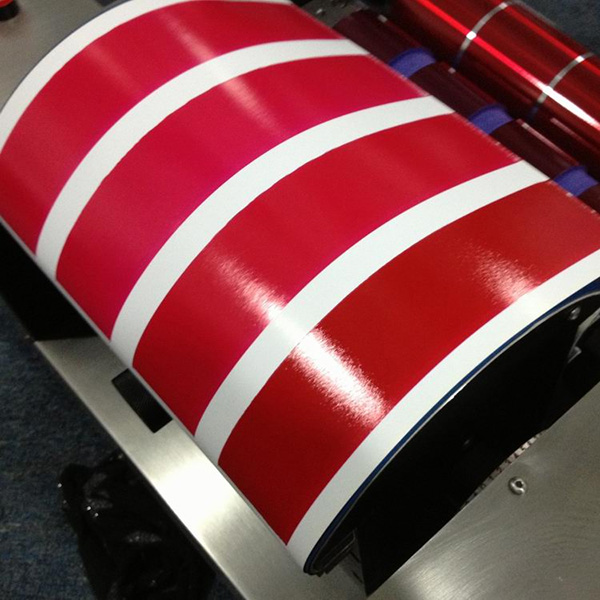

Effective area of color bar	45mm x 210 mm (4 bars) Original color area: 4 bars; Light colored area: 4.

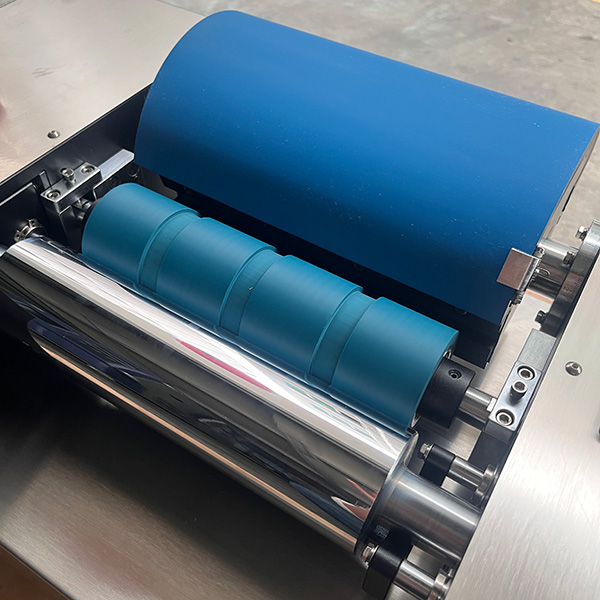

Rubber roller	German imported rubber (VU70), made of the same material as the printing machine rubber roller; (Ordinary rubber roller/UV rubber roller optional)
Inverter	Taiwan Delta
Control System	Maintenance Control System
Control mode	human-machine interface
Dimensions	690 * 380 * 280mm
Product weight	80KG
Power supply	220V, 50Hz
Power	400W
Working environment	temperature: (20 ± 10 ℃), humidity<85%
