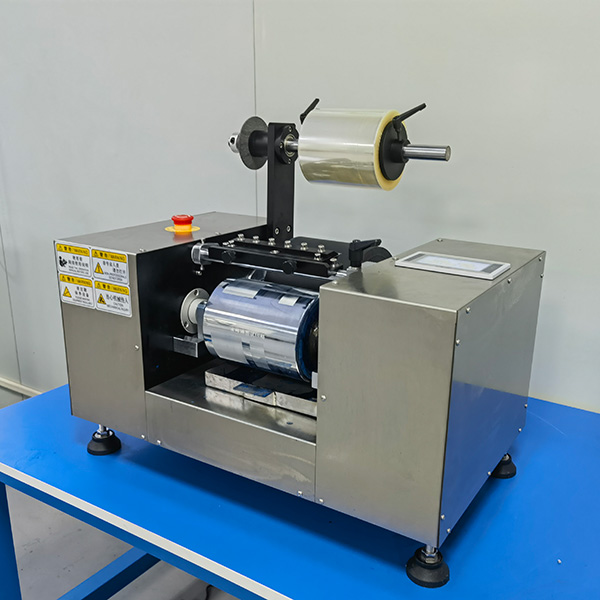

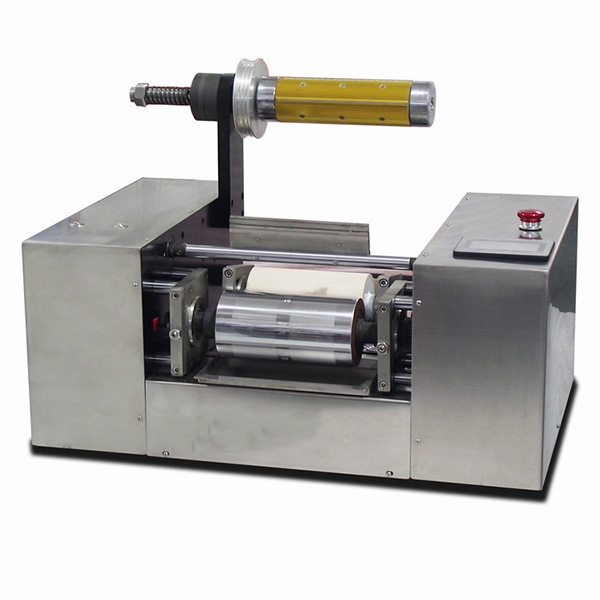

Gravure Color Development Unit ZY-OB01

Purpose of the colorimeter:

The gravure spot color proofing machine is designed and manufactured to mimic the operating principles of a printing press. It features adjustable pressure and supports a wide range of substrates, making it suitable for use in packaging printing, paper manufacturing, ink production, and research institutions, among other sectors. Through standard proofing, the spot color proofing machine accurately predicts the hue of the ink. By continuously comparing the ink color against the standard sample, the correct ink formulation is determined. Once the spot color is properly formulated, mass production is carried out on the printing press according to that formulation, thereby shifting the color matching process entirely to the prepress stage.

Standard：

QB/T 2929 -2008 ,GB/T 22363

Product Features:

Operation: Touchscreen control, automatic positioning, and pneumatic pressing to eliminate errors caused by manual operation;
Power Configuration: Equipped with high-precision servo motors and a servo system based on Japanese technology;
Imprinting Method: Utilizes a “cylinder-to-cylinder” imprinting method to ensure better contact between the design and the roller;

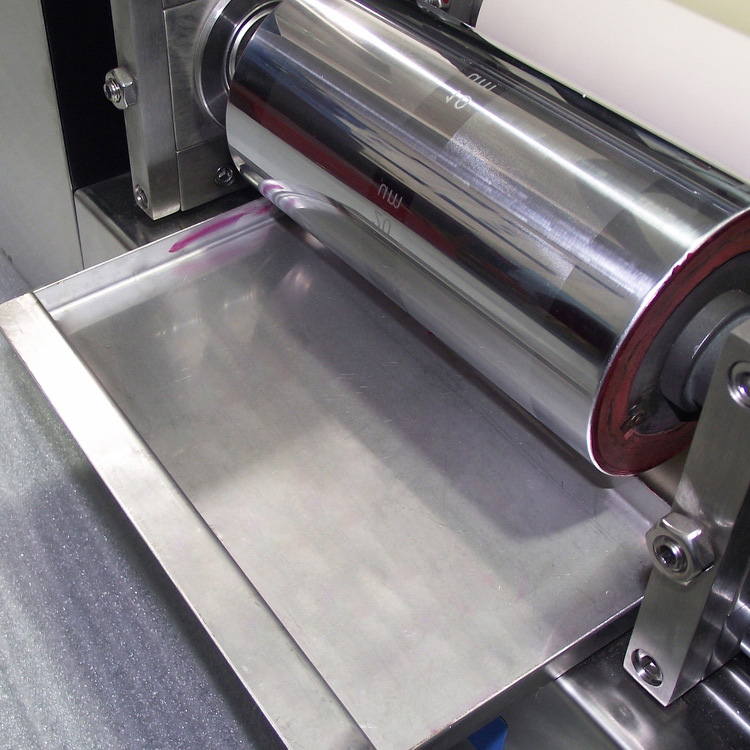

Ink delivery via a doctor blade; gravure anilox rolls are produced using electro-engraving or laser engraving for higher precision;
Equipped with a drive cleaning device: the anilox roll and rubber roll can be separated for more convenient cleaning of the anilox roll;
Pre-print positioning adjustment: equipped with an automatic reset sensor system;
Anilox rolls: different styles of anilox rolls can be quickly replaced, and customization is available upon customer request.

Item	Specification
Number of screens	One gradient screen included as standard (depth: 20 μm, 25 μm, 30 μm, 35 μm, 40 μm, 45 μm, 50 μm, 55 μm; customization available upon request)
Screen dimensions	130 x 140 mm
Color bar dimensions	60 x 108 mm per bar; 6 sets total, 2 bars per set, 12 bars total (Other film thicknesses can be customized upon request)
Operation	Touchscreen control

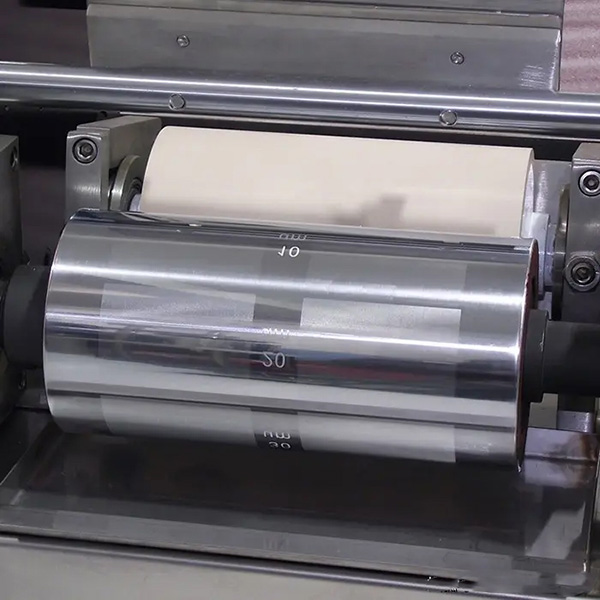

Gravure roller dimensions	180 mm, diameter: 140 mm; rubber roller length: 120 mm, diameter: 220 mm
Power configuration	Equipped with high-precision servo motors; utilizes Japanese-engineered servo systems
Imprinting method	Round-to-round imprinting
Printing pressure	Pneumatic pressure adjustment (0–2 mm), adjustable from 0 to 1.0 MPa
Printing speed	Approximately 0–80 meters per minute, capable of low-precision registration
Sample feeding	Equipped with a sample feeding device
Sample collection	Equipped with a sample collection device
Pre-print position adjustment	Equipped with an automatic reset sensor system
Anilox Rollers	Quick-change anilox rollers with various patterns
Color Sample Size	45 x 45 mm per grid
Gray Scale	10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100% (customizable upon request)
Dimensions & Net Weight	380 × 640 × 250 (L × W × H) mm, Net Weight: 100 kg
Power	450 W
Power Supply	220 V, 50 Hz
