The Box Compression Test (BCT) strength of a corrugated box is a core indicator of its ability to protect goods during stacking and transportation. Understanding the factors that affect BCT can help optimize material costs and prevent logistics losses caused by packaging collapse.
1、Material Quality & ECT
The compression strength of a box largely depends on the physical properties of the base paper. Edge Crush Test (ECT) value is the foundation of BCT. The higher the ring crush strength and fiber toughness of the base paper, the stronger the finished carton. Using high-quality virgin wood pulp paper generally yields better performance than recycled paper.
2、Box Design & Dimensions
The ratio of length, width, and height directly affects a box's load-bearing capacity. Generally, a larger perimeter results in higher BCT. However, given a fixed perimeter, increasing the height may reduce stability, thereby lowering the BCT value. Additionally, the choice of flute type (e.g., A, B, C, or E flutes) is crucial, as different flutes perform differently under vertical compression.
3、Environmental Humidity & Moisture

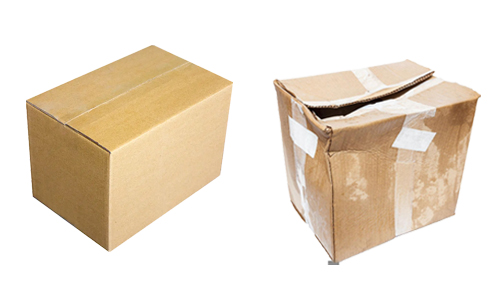

Corrugated board is highly hygroscopic. Research shows that as the moisture content of a box increases, its compression strength drops sharply. In environments with humidity above 80%, the BCT value can decrease by more than 50%. Therefore, in laboratory testing, pre-conditioning in a constant temperature and humidity environment according to ISO 187 is mandatory.
4、Printing & Die-Cutting
Large-area printing, especially deep printing, can damage the fibers of the corrugated board and crush the flutes, leading to a 10%-20% loss in compression strength. Similarly, die-cutting handle holes or ventilation holes on the sides weakens the structural integrity of the box, with BCT decreasing depending on the position and size of the openings.
5、Stacking Patterns & Storage Duration

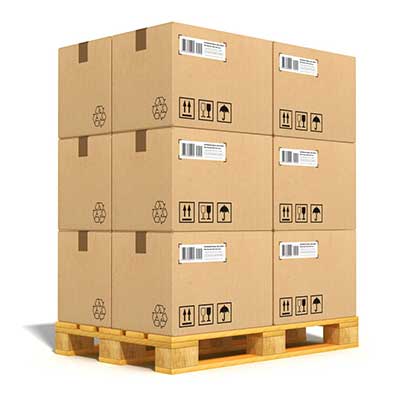

How boxes are stacked in a warehouse significantly impacts their actual load-bearing capacity. Column Stacking maximizes the compression potential, while Interlocking Stacking, though more stable, can reduce BCT by approximately 30%. Furthermore, due to the "creep effect," a box's strength will gradually decay over time under a long-term static load.
Conclusion: How to Measure BCT Accurately？

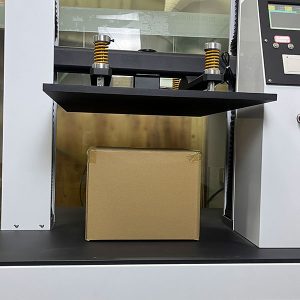

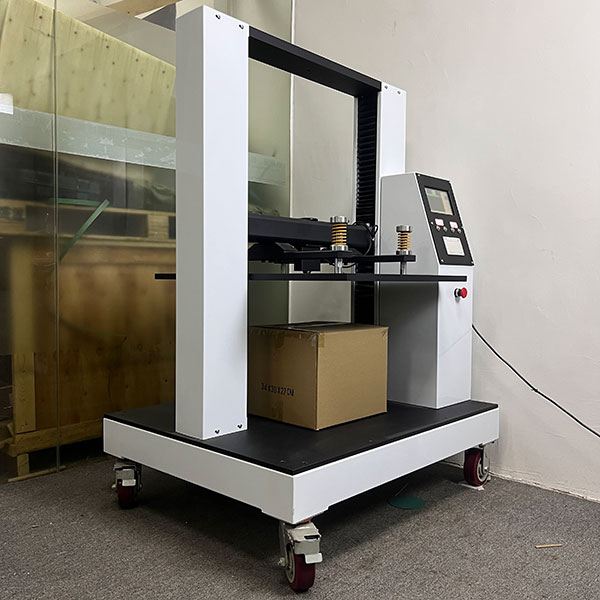

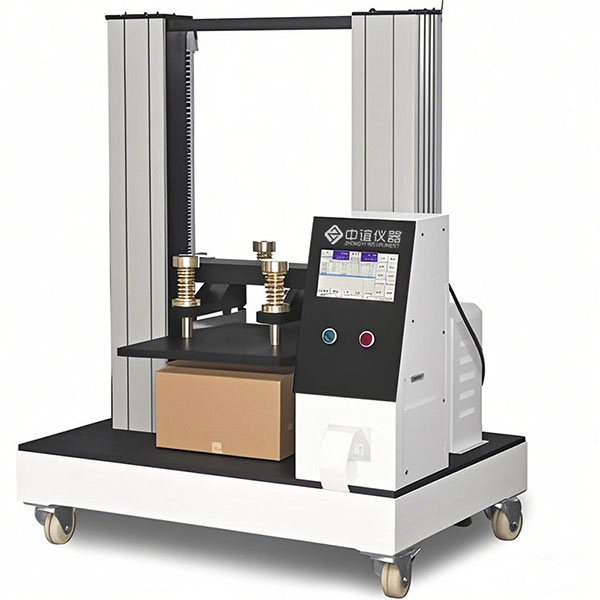

To ensure your packaging meets export and logistics requirements, it is essential to use a high-precision Carton Compression Tester. Zhongyi Instruments provides professional testing solutions that comply with ISO 12048 standards.
