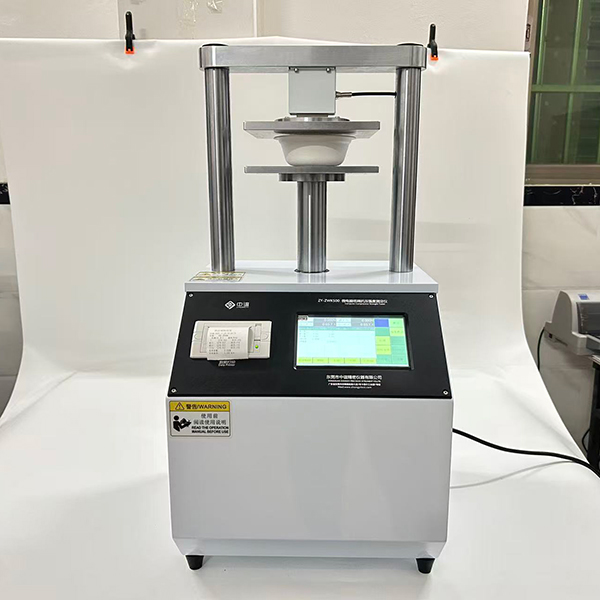

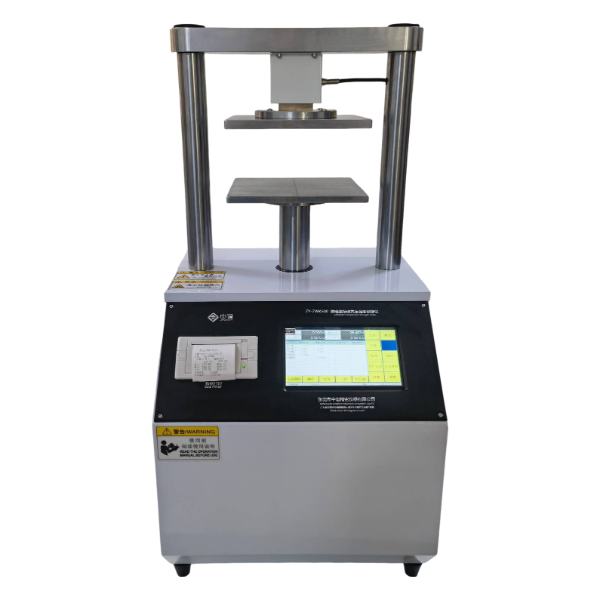

Paper bowl compressive strength testing machine ZY-ZWK500

Product Introduction of Compression Tester：

ZY-ZWK500 Paper Bowl Compressive Strength Tester (also known as Microcomputer Compressive Strength Tester, Electronic Compressive Tester) is a professional testing equipment used to test the compressive performance of paper packaging containers such as paper bowls, paper cups, and paper tubes. It meets the requirements and regulations of GB/T4857.4 "Pressure Test Method for Packaging and Transport Packages" standard, and has three built-in testing modes to meet the compressive performance testing of small paper tubes, paper bowls, paper drums, paper boxes, plastic beverage bottles and cans and other packaging containers.

Working Principle:

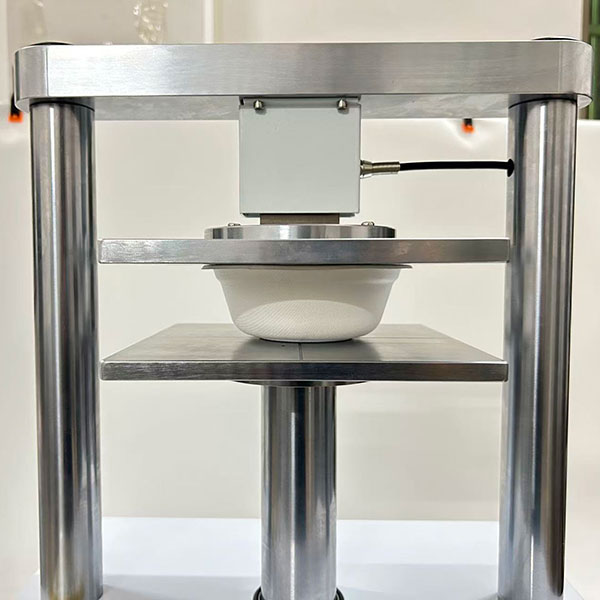

Place the test sample between two parallel pressure plates of the testing machine, apply pressure evenly, record the load and pressure plate displacement until the test sample ruptures or the load or pressure plate displacement reaches the predetermined value.

Technical features:

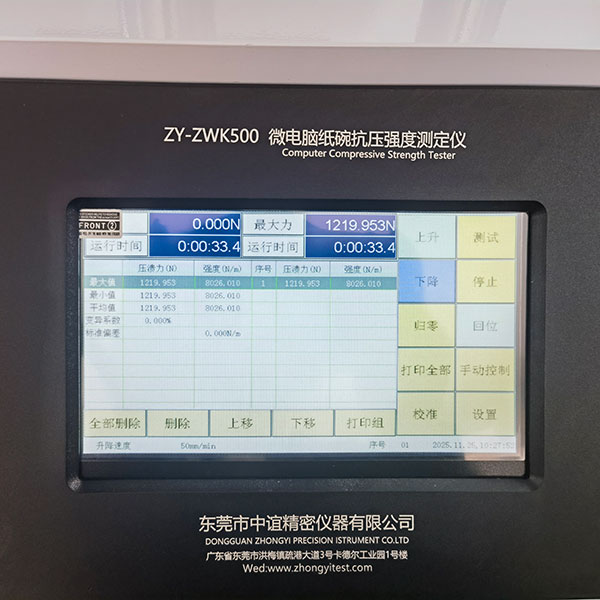

1. 7-inch touch screen has a bilingual system in Chinese and English, which displays real-time pressure resistance information and provides more intuitive data;
2. The force and time can be directly set, and after the test is completed, it will automatically reset and record the compressive strength and deformation of the cardboard box;
3. Open structure design, double ball screw, double guide column, good parallelism, stability, strong rigidity, long service life;
4. Intelligent configurations such as extreme travel protection, overload protection, etc. ensure the safety of user operations,
5. Built in power protection device can protect equipment from damage caused by excessive or unstable power magnetic field.
6. The instrument is equipped with a high-speed micro printer, which prints data such as test time, test number, maximum crushing force, compression displacement, etc;

Scope of Application:

1. Paper Bowl: Used for measuring the compressive strength of various capacity instant noodle paper bowls, disposable food paper buckets, and other products.
2. Disposable paper cups: Suitable for the requirements of compressive strength testing instruments for disposable paper cups and paper bowls.
3. Disposable plastic cup: suitable for testing the compressive strength of disposable plastic cups.
4. Milk tea cup: The beverage cup compression strength tester is suitable for testing the compressive strength of packaging cups, milk tea cups, etc.
5. Carton: Suitable for compressive strength testing of corrugated cardboard boxes, honeycomb cardboard boxes, single-layer cardboard boxes, and heavy-duty cardboard boxes
