thickness gauge ZY-WHY06

Applications of the Thickness Gauge:

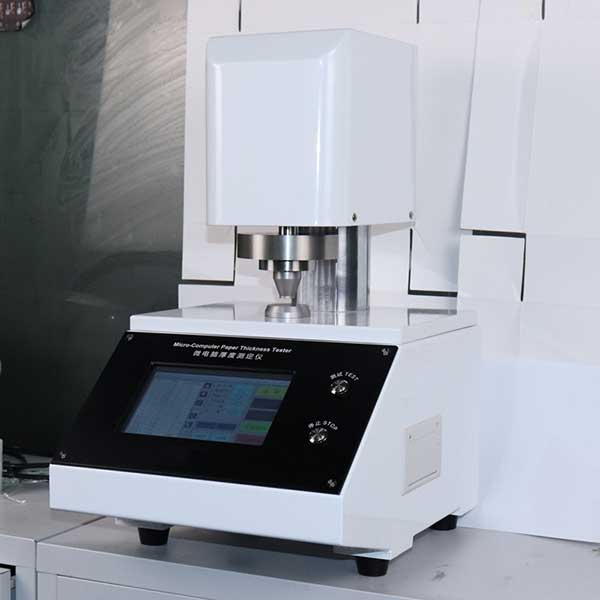

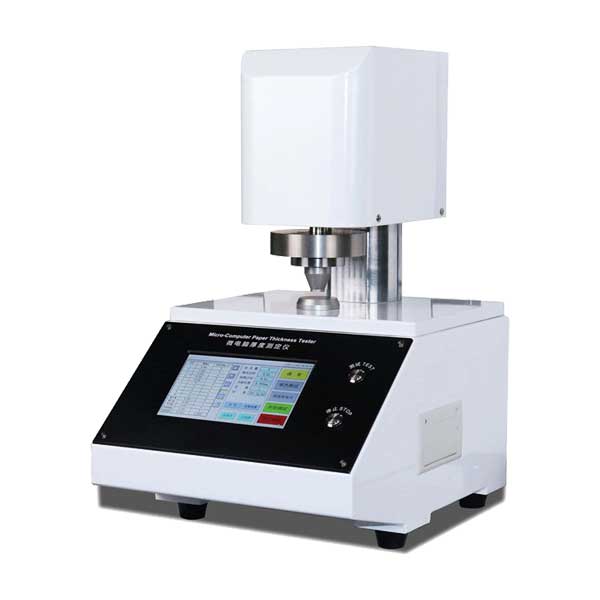

The Microcomputer Paper Thickness Tester (with Tension Measurement Function) is a fully automatic, high-precision paper thickness testing instrument developed by our company in accordance with national standards. It features a touchscreen control system and a fully automatic testing mode, tests are completed with a single button press. It can operate as a standalone unit or be configured for continuous testing to minimize errors. It is designed to measure the single-sheet thickness, stacked thickness, and cross-sectional thickness variation of paper up to 6 mm thick, and is specifically suited for the precise measurement of the thickness of paper, thin sheets, plastic films, and other materials within its measurement range.

Testing Principle：

Under a specified static load, a thickness gauge meeting accuracy requirements is used to measure the thickness of a single sheet or a stack of sheets according to test specifications. The results are expressed as either single-layer thickness or cumulative thickness. Based on the basis weight of the paper or cardboard and the single-layer or cumulative thickness, the single-layer density or cumulative density is calculated respectively.

Complies with the following standards:

QB/T 1035 “Thickness Gauges for Paper and Paperboard”;
QB/T 451.3 “Methods for Determining the Thickness of Paper and Paperboard”;
QB/T 1055 “Thickness Gauges for Paper and Paperboard”;
ISO 438 “Paper—Determination of Laminated Thickness and Density”.
ISO 534 “Paper and paperboard—Determination of single-layer thickness and calculation of board density”;

Key Performance Advantages：

1. 7-inch touchscreen with curve display; supports seamless switching between Chinese and English;
2. Features data statistics and processing capabilities; allows setting the number of tests and automatically saves data;
3. Can measure single-layer thickness, total layer thickness, and thickness variation across the width, and automatically calculates the density value;

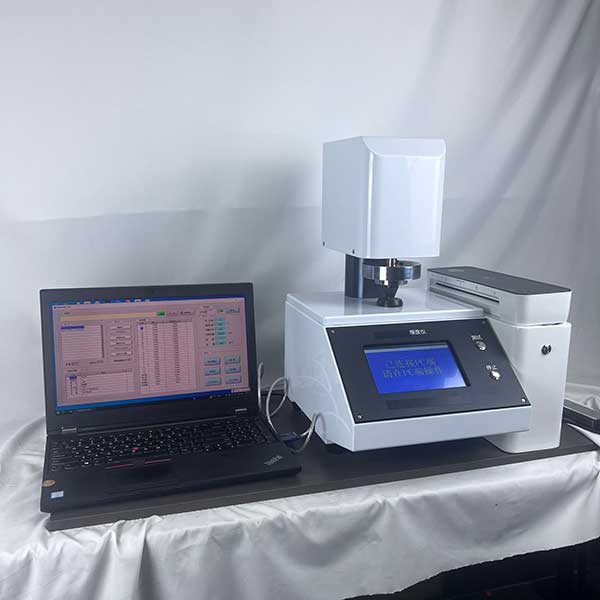

4. Equipped with a miniature thermal printer; optional connection to a computer for automatic plotting of real-time test data curves;
5. Utilizes a high-precision displacement sensor; the instrument features testing, conversion, display, memory, printing, and data processing functions

What materials is the thickness gauge suitable for?

Paper Samples: Printing paper, coated paper, white board paper, cardstock, kraft paper, writing paper, check paper, gray board, and other types of paper and cardboard
Other Sheet Materials: Leather, rubber, film, aluminum foil, plastic, and other materials
Testing Accuracy: Selectable to the thousandths or ten-thousandths place; digitally displayed, electronically controlled, and computer-regulated.
